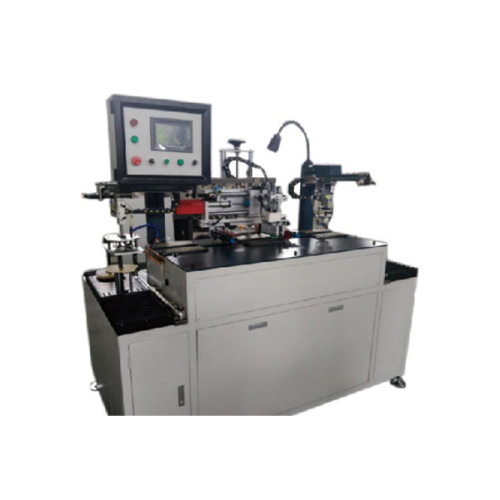

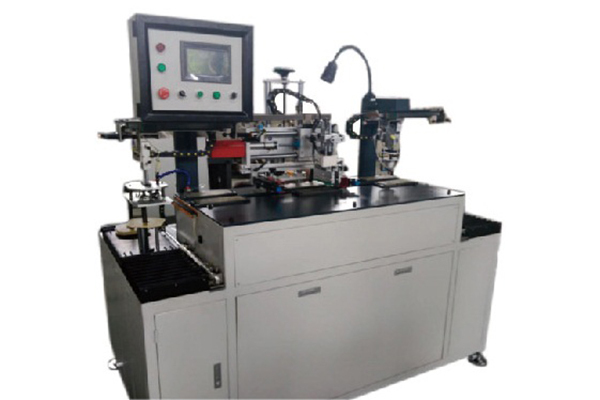

Saw blade printing machine

A saw blade screen printing machine is a specialized device used to apply printed designs, logos, or text onto the surface of saw blades using the screen printing process. This machine is designed to handle the unique shape and surface characteristics of saw blades, ensuring precise and durable application of the ink.

Key Components:

1. Screen Frame and Mesh: The screen frame holds the mesh, which is coated with a stencil of the desired design. The mesh allows ink to pass through only in the areas where the design is open.
2. Ink System: The machine includes an ink reservoir and squeegee system to apply and push ink through the mesh onto the saw blade.
3. Saw Blade Holder: A fixture or holding mechanism secures the saw blade in place during the printing process to ensure alignment and stability.
4. Printing Table: The surface on which the saw blade is placed and where the screen is aligned.
5. Drying System: Post-printing, a drying system may be integrated to cure the ink, ensuring it adheres properly and is durable.

Process:

1. Preparation: The stencil of the desired design is created on the mesh screen.
2. Positioning: The saw blade is securely placed in the holder on the printing table.
3. Inking: Ink is applied to the screen, and the squeegee pushes the ink through the mesh onto the surface of the saw blade.
4. Printing: The screen is lowered onto the saw blade, and the squeegee moves across the screen, transferring the ink.
5. Drying/Curing: The printed saw blade is moved to a drying system to cure the ink, making it durable and resistant to wear.

Benefits:

• Precision: Ensures accurate placement of designs on the curved surface of saw blades.
• Durability: Screen printing provides long-lasting and resistant prints.
• Efficiency: Capable of handling high-volume production with consistent quality.

Using a saw blade screen printing machine, manufacturers can enhance the appearance and functionality of their products with clear, durable markings that withstand the rigors of use in various industrial applications.
